Swimming Pool Heat Exchanger Model Comparison
Call For The Lowest Price
No taxes charged to US customers.
Call now to purchase or for model selection assistance.
1-800-335-6650
8am to 4pm Eastern Standard time.
- High efficiency.
- Removable tube bundle.
- Fast delivery from stock.
- Stainless Steel:
- Excellent value for chlorine based pools.
- 24 months warranty.
- Grade 316-L stainless steel is used in all stainless models.
- Titanium:
- Salt water pool / spas must use titanium.
- 10 year warranty
- Titanium is the ultimate material for use in pools and spas. You can expect 30 + years of trouble free service.
Model 5102-2S/Ti
22,000 Gallons
Specifications:
- Pools sizes up to 22,000 Gallons.
- 135,000 btu/hour at 170°f boiler temperature.
- 75,000 btu/hour at 140°f boiler temperature.
- 24,500 btu/hour at 113°f boiler temperature.
- Pressure Loss - Shell / Boiler
- 5.3 GPM - 0.2 PSI
- 10.5 GPM - 1.1 PSI
- 15.8 GPM - 2.3 PSI
- 21.0 GPM - 5.2 PSI
- Pressure Loss - Tube / Pool
- 13.0 GPM - 0.07 PSI
- 26.5 GPM - 0.3 PSI
- 40.0 GPM - 0.6 PSI
- 23.0 GPM - 1.1 PSI
Model 5102-3S/Ti
32,000 Gallons
Specifications:
- Pools sizes up to 32,000 Gallons.
- 240,000 btu/hour at 170°f boiler temperature.
- 135,000 btu/hour at 140°f boiler temperature.
- 35,000 btu/hour at 113°f boiler temperature.
- Pressure Loss - Shell / Boiler
- 5.3 GPM - 0.3 PSI
- 10.5 GPM - 1.3 PSI
- 15.8 GPM - 3.1 PSI
- 21.0 GPM - 5.4 PSI
- Pressure Loss - Tube / Pool
- 13.0 GPM - 0.1 PSI
- 26.5 GPM - 0.4 PSI
- 40.0 GPM - 0.9 PSI
- 23.0 GPM - 1.3 PSI
Model 5102-5S/Ti
36,000 Gallons
Specifications:
- Pools sizes up to 36,000 Gallons.
- 308,000 btu/hour at 170°f boiler temperature.
- 175,000 btu/hour at 140°f boiler temperature.
- 85,500 btu/hour at 113°f boiler temperature.
- Pressure Loss - Shell / Boiler
- 5.3 GPM - 0.4 PSI
- 10.5 GPM - 1.6 PSI
- 15.8 GPM - 3.6 PSI
- 21.0 GPM - 6.5 PSI
- Pressure Loss - Tube / Pool
- 8.0 GPM - 0.04 PSI
- 24.0 GPM - 0.4 PSI
- 32.0 GPM - 0.7 PSI
- 40.0 GPM - 1.1 PSI
Model 5103-2S/Ti
44,500 Gallons
Specifications
- Pools sizes up to 44,500 Gallons.
- 340,000 btu/hour at 170°f boiler temperature.
- 190,000 btu/hour at 140°f boiler temperature.
- 78,000 btu/hour at 113°f boiler temperature.
- Pressure Loss - Shell / Boiler
- 13.0 GPM - 0.3 PSI
- 26.5 GPM - 0.5 PSI
- 40.0 GPM - 1.2 PSI
- 53.0 GPM - 2.2 PSI
- Pressure Loss - Tube / Pool
- 53.0 GPM - 0.6 PSI
- 80.0 GPM - 1.1 PSI
- 105.0 GPM - 2.0 PSI
- 160.0 GPM - 2.8 PSI

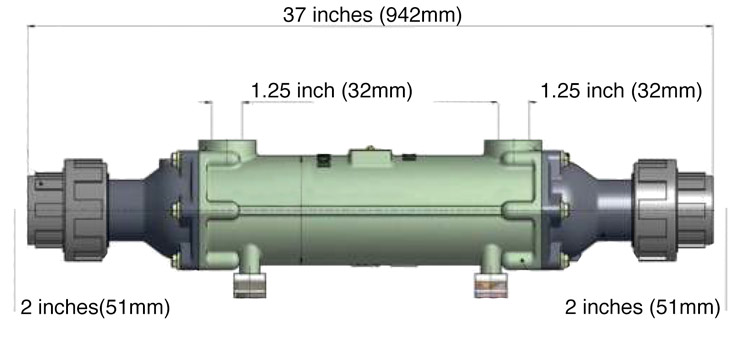

Model 5103-5S/Ti
62,500 Gallons
Specifications:
- Pool sizes up to 62,500 Gallons.
- 680,000 btu/hour at 170°f boiler temperature.
- 440,000 btu/hour at 140°f boiler temperature.
- 150,000 btu/hour at 113°f boiler temperature.
- Pressure Loss - Shell / Boiler
- 13.0 GPM - 0.7 PSI
- 26.5 GPM - 1.4 PSI
- 40.0 GPM - 3.6 PSI
- 53.0 GPM - 5.4 PSI
- Pressure Loss - Tube / Pool
- 53.0 GPM - 0.9 PSI
- 80.0 GPM - 1.9 PSI
- 105.0 GPM - 3.2 PSI
- 160.0 GPM - 5.0 PSI
Model 5107-5S/Ti
82,000 Gallons
Specifications:
- Pool sizes up to 82,000 Gallons.
- 1,000,000 btu/hour at 170°f boiler temperature.
- 600,000 btu/hour at 140°f boiler temperature.
- 200,000 btu/hour at 113°f boiler temperature.
- Pressure Loss - Shell / Boiler
- 20.0 GPM - 0.65 PSI
- 40.0 GPM - 2.71 PSI
- 60.0 GPM - 5.34 PSI
- Pressure Loss - Tube / Pool
- 50.0 GPM - 0.62 PSI
- 100.0 GPM - 2.71 PSI
- 200.0 GPM - 5.27 PSI
Model 5102-1Ti
Hot Tub / Spas
Specifications:
- Titanium. A must for hot tubs / spas.
- 10 year warranty.
- Small pools up to 13,000 Gallons.
- 85,000 btu/hour at 170°f boiler temperature.
