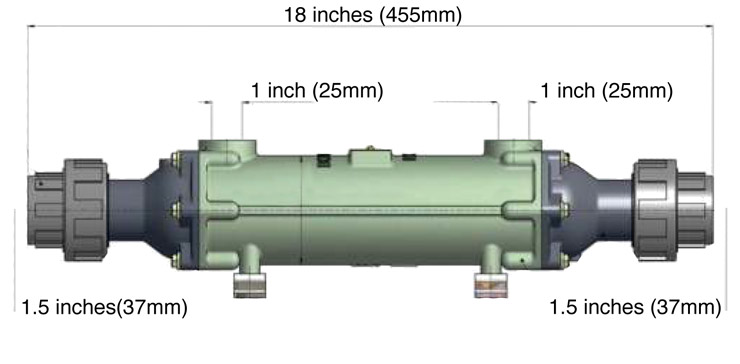

22,000 Gallon Swimming Pool Heat Exchanger
Model 5102-2Ti / S
No taxes charged to US customers.
Call now to purchase or for model selection assistance.
1-800-335-6650
Energy Chart
| Model | Pool Size | 170 F btu/hr | 170 F kw | 140 F btu/hr | 140 F kw | 113 F btu/hr | 113 F kw |
|---|---|---|---|---|---|---|---|
| 5102-2Ti / S | 22,000 gal | 135,000 | 40 | 75,000 | 22 | 24,500 | 7 |
Pressure Loss Chart 5102-2Ti/S
| Shell / Boiler | GPM | PSI | Lit\m | kPa | Tube / Pool | GPM | PSI | Lit\m | Kpa |
|---|---|---|---|---|---|---|---|---|---|
| 5102-2Ti / S | 5.3 | 0.2 | 20 | 1.5 | 5102-2Ti / S | 13 | 0.07 | 50 | 0.5 |
| 5102-2Ti / S | 10.5 | 1.1 | 40 | 7.2 | 5102-2Ti / S | 26.5 | 0.3 | 100 | 2.0 |
| 5102-2Ti / S | 15.8 | 2.3 | 60 | 15.6 | 5102-2Ti / S | 40 | 0.6 | 150 | 4.0 |
| 5102-2Ti / S | 21 | 5.2 | 80 | 35 | 5102-2Ti / S | 53 | 1.1 | 200 | 8.0 |
